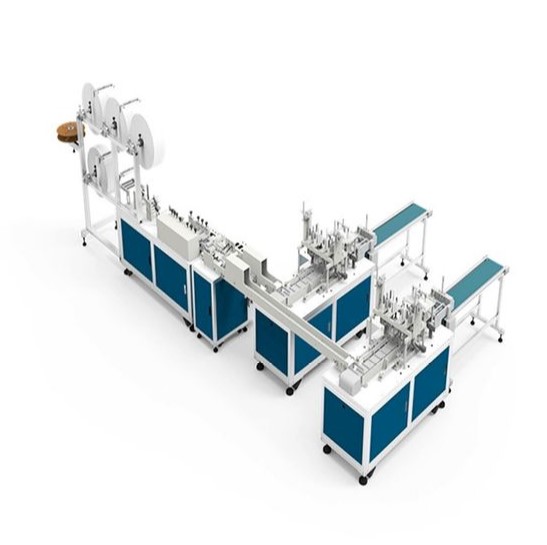

Medical face mask machine, full name is automatic high-speed flat earloop mask production line, used to produce disposable medical face masks in mass production.

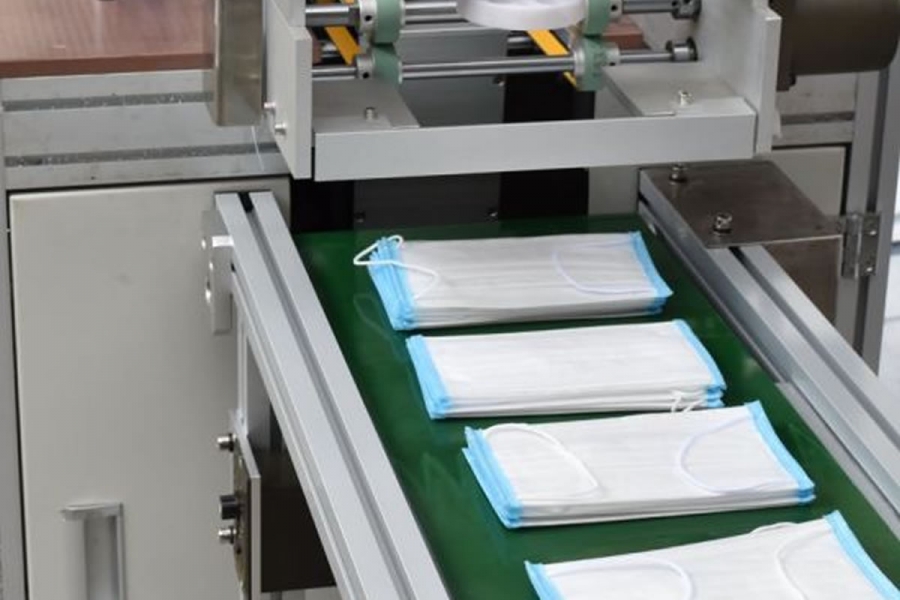

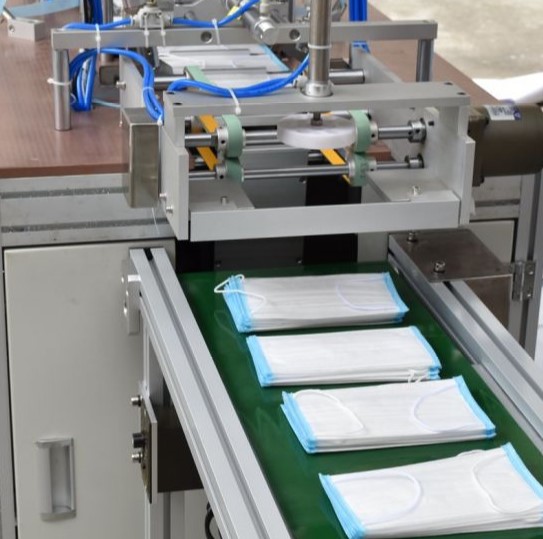

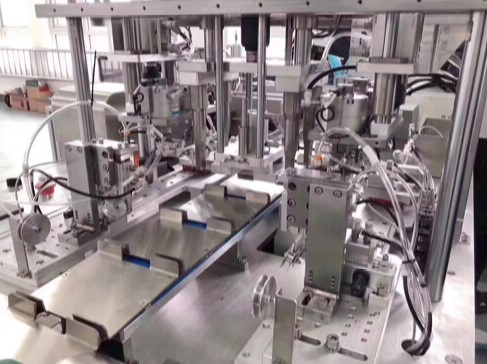

Medical surgical face mask making machine line consists of components to finish the whole procedure of producing surgical face masks or disposable face masks, consists of conveyor devices for delivering the raw materials(layers of non-woven fabric, nose clip metal wire, earloops rope), the cutting process(the mask body cutting, the nose clip cutting), the welding process of earloops, the folding process and etc.
|
Model |
TM120 |
TM100 |
|
Complete Mask Productivity |
120 ~ 160 Pcs / Min |
80 ~ 110 Pcs / Min |
|
Complete Mask Productivity |
110 ~ 130 Pcs / Min |
60 ~ 80 Pcs / Min |
|
Leadtime |
10 Days |
25 Days |
|
Set-up Time |
0.5 Day |
2 Days at least |
|
Power |
220V AC ± 5% , 50 Hz, ~ 7 Kw |
220V AC ± 5% , 50 Hz, ~ 8.8 Kw |
|
Dimensions |
Mask Body Machine: 4200 x 800 x 1500, 130 Kg |
6800 x 4800 x 1860 |
|
Packaging Info. |
Case 1 (Mask Body ) – 2400 x 1400 x 1500 mm, weight: 180kg; |
Case 1: 2.1 x 0.9 x 1.2 m (L x W x H) |
|
Power |
220V AC ± 5% , 50 Hz, ~ 6 Kw |
220V AC ± 5% , 50 Hz, ~ 8.8 Kw |
|
Compressed Air Source Requirements |
0.5 ~ 0.8 MPa |
0.5 ~ 0.8 MPa |
|
Facility environment requirements |
Temp. 10 ~ 40 ℃, humidity 5 ~ 35 %, |
Temp. 10 ~ 40 ℃ |
