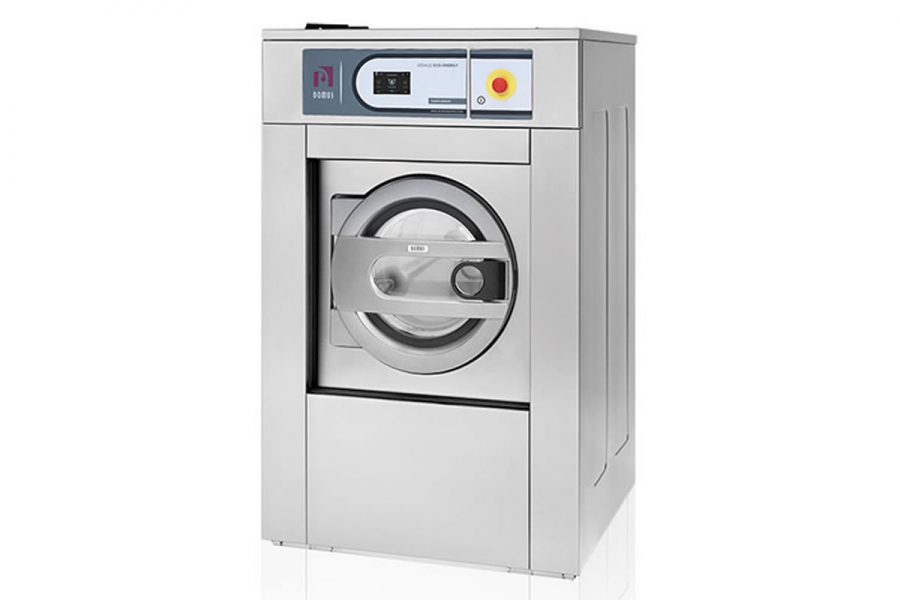

Full Automatic Washer and Extractor - 10 Kg

Full Automatic Washer and Extractor - 10 Kg

  • Outer surface finish and entire surface which is in contact with water and clothes are made of at least AISI 304 (18/8 Cr-Ni) grade stainless steel material.
  • Body is made of box profile material which is electrostatic dust painted.
  • There is 15 available programs according to soiling level of the clothes and 10 customizable programs. When a suitable program is chosen, it saves detergent, water and power consumption and it saves time.
  • Since this unit performs all of the washing, spinning, boiling operations; it fulfills the tasks which are usually carried in three separate units. This ensures the user to save space and save money.
  • It has a computer in it that controls temperature and adjustment. You may adjust the existing programs or make your own programs by tapping the touch-sensitive electronic control panel.
  • Machine RPM is ensured by the means speed control devices.
  • It has a safety lock to prevent the lid from opening while the machine is running.
  • While running, the machine operation automatically ceases in the cases of extreme vibration or clothes that are being washed are not suitable for spinning. Therefore, it prevents the damage to the machine.
  • To prevent electric shock, the unit features Class 1 safety TS2000 power instruments that are manufactured in compliance with the required standard.
  • Based on the energy selection of the user, the heating system is energized by either steam or power.

Product Code

KOCYS – E/10 & KOCYS – B/10

CAPACITY

10 KG/LOAD

DRUM DIAMETER

550 MM

DRUM DEPTH

450 MM

DRUM VOLUME

106 LT



Drum RPM



WASHING RPM*

25-60

DISTRIBUTION RPM*

60-110

SLOW SPINNING RPM

400

FAST SPINNING RPM

850-990

G FACTOR OF FAST SPINNING

300 G

NUMBER OF PROGRAMS

9 FIXED

HEATING SYSTEM

POWER/STEAM

POWER HEATING***

7.5 KW

OPERATION STEAM PRESSURE

0.3-4 ATÜ

MOTOR**

1.5 HP – 1.1 KW

CROSS SECTION OF POWER WIRES

POWER 5x10 MM2 | STEAMY 5x2.5 MM2

WATER INLET (COLD/HOT)

3/4”

STEAM INLET**

3/4”

DIMENSIONS



WIDTH

840 mm
